Press Brake CNC
Please click photos or list for details
.jpg)
.jpg)
 A-1.jpg)
Please Scroll Down:
750 TON X 22' 750H18 CINCINNATI HYDRAULIC PRESS BRAKE
750 TON X 22' 750H18 CINCINNATI HYDRAULIC PRESS BRAKE
Machine Details:
SERIAL ......................... 39343
MODEL .......................... 750H18
YEAR ........................... 1976
CAPACITY ....................... 750 TONS
CAPACITY FAST PRESS ............ 300
OVERALL LENGTH OF BED .......... 22'
DISTANCE BETWEEN HOUSING ....... 18'
STROKE ......................... 12"
OPEN HEIGHT .................... 22"
CLOSED HEIGHT .................. 10"
RAM SPEED RAPID ADVANCE ........ 90 IMP
RAM SPEED FAST PRESS ........... 48 IPM
RAM SPEED FULL TONNAGE PRESS ... 20 IPM
RAM SPEED RETURN ............... 36 IPM
RAM SPEED FAST RETURN .......... 66 IPM
MOTOR .......................... 60 HP
WEIGHT 127,100 LBS.
EQUIPPED WITH:
ADJUSTABLE 8" BOTTOM FEMALE ADAPTER
MISC TOOLING
59' x 2000 Ton Duck Sung CNC Hydraulic Press Brake
KOREAN 59 FOOT X 2000 TON PRESS BRAKE HYDRAULIC CNC 1997
59 FOOT X OVER ALL
49 FOOT BETWEEN HOUSINGS
40 INCH THROAT -1 METRE
QUALITY BRAND NAME
VIDEO ON DEMAND
MULTIPLE PHOTOS
DOCUMENTATION AND DRAWINGS AND ELECTRICAL ETC AVAILABLE
DELEM CNC CONTROL
DEFLECTION COMPENSATION
SYSTEM
USA LOCATION
EX PLANT LOCATION
59 FOOT X 2000 TON
CNC CONTROL MADE BY DELEM (DUTCH)
BOSCH HYDRAULICS, BOSCH ELECTRICS
HEIDENHAIN LEVELING SYSTEM
OVERALL BED AND RAM 59 FEET (18000MM)
DISTANCE BETWEEN HOUSINGS: 49'3" (15040MM)
ELECTRICS:KW 55-6P-2EA
DOWN-ACTING STROKE:15.74"(400MM)
SPEEDS: RAPID=30 M/S, ADVANCE/RETURN=48 MM/SEC AND FAST
PRESS= 4 MM/SEC
TABLE HEIGHT: 890 MM 3’.
HYDRAULIC CYLLINDER DIAMETER:
MAIN - 500MM (2 PER SET)
AUXILIARY 200MM (2 PER SET).
HYDRAULIC PUMP: 160CC/REV.
FLOOR TO BOTTOM OF PIT: 2400mm (96”)
LENGTH OF PIT:3600MM
ABOVE GROUND: 18,000mm L (61’) x 3,450mm W (12’) x 4,850mm H (17’)
USA.
Price will include Loading on (14) flat beds (3 of the flat beds will be weight permitted loads.
Approx cost for pit: 10’ deep x 60’ $25,000.00 USD
Approx. Re-Assembly with a crew of 4 technicians: 2 weeks
Individual weights of dismantled parts:
Two (2) Side Frames @ 80,000 lbs. each 160,000 lbs.
One (1) Top Section of Top Ram 130,000 lbs.
One (1) Bottom Section of Top Ram 90,000 lbs.
One (1) Lower Section of Apron 50,000 lbs.
One (1) Top Section of Apron 56,000 lbs.
Two (2) Tie Beams 48’ long @18,500 lbs. 37,000 lbs.
One (1) Hyd. Tank 18,500 lbs.
Two (2) Back supports to Side Frames @ 12,000 lbs. each 24,000 lbs.
Three (3) Upper Die Holders @ 2,550 lbs. each 7,650 lbs.
Three (3) Lower Doe Holders @ 5,500 lbs. each 16,500 lbs.
Everything below is combined weight.
Two (2) sets of cylinders 26,000 lbs.
Clamps for Apron
Linkage frames
Roller Conveyors
Misc. piping floor plates
Pumps Moto
14' x 400 Ton American Hercules 1980 Hydraulic Press Brake
Specifications (Preliminary Pending Arrival)
Overall Bending Length: 168"
Distance Between Housings: 150"
Shut Height: 12"
Throat Depth: 9.5"
Stroke: 14"
Equipped With:
All available Dies and Holders
New Automec Series 150 2 axis CNC Back Gauge can be offered for 15K
Pit Required for Apron 154" X 2.5" X 14"
Serial No: B350150005 Year Mfg. 1980
14' x 230 Ton 1987 Cincinnati CNC Hyd Press Brake
1987 Cincinnati 230 Ton x 14'CNC Hydraulic Press Brake
230 ton capacity
Cincinnati CNC Controller
Black Max Link Lite Light Curtains, Range to 50"
Auto crowning
Power clamping
12" throat
12'6" between housings
14' overal die surface.
10" stroke
7" closed height.
Control was updated in 2005. (Windows 2000) $POR
12 X 400 TON ALLSTEEL PRESS BRAKE 400 TON X 12 FOOT 10 FT 2 bETWEEN HOUSINGS HYDRAULIC 12 IN
ALLSTEEL 400 TON X 12 FOOT PRESS BRAKE HYDRAULIC DOWNACTING
400 TON CAPACITY
OVERALL 12 FOOT
DISTANCE BETWEEN HOUSINGS 10 FOOT 2 INCHES
0 TO 12 INCH STROKE
22 INCH DAYLIGHT
OVERALL DIMENSIONS 15 FOOT X 90 INCHES X 144 INCHES
WEIGHT 82000 LBS or less
COMPACT SYTLE MACHINE
EXCELLENT BRAND NAME
COMBINES THE BEST FEATURES OF MECHANICAL AND HYDRAULIC
NORTHEAST LOCATION
CAN BE SEEN UNDER POWER
INVGSLN031012
Ad Number: 312341
Loire PRESS BRAKE 400 TON X 7050MM 1999 CNC 5100 bh HYDR
Loire PRESS BRAKE 400 TON X 7050MM 1999 CNC 5100 bh HYDR
Manufacturer:
Loire
Type:
PRESS BRAKE HYDRAULIC
Model:
PHSE 400-700-51 400 T X 7050
Year:
1999
Condition:
Very Good
Description:
CNC Press Brake
LOIRSAFE PHSE-400-700-51
Type: PHSE-400-700-51
Year of production: 1999
Control: CNC DNC 800
Made in: Spain
Thrust: 400 ton
Bending length: 7 050 mm
Distance between stands: 5 100 mm
Max stroke: 300 mm
Overall power demand: 32 kW
Machine weight: 32 000 kg
INVTSPRTNIHTEN011113
Ad Number: 335647
16' x 400 Ton Pullmax Hydraulic Press Brake
Pullmax press brake hydraulic 440 ton x 16 foot 14 foot between housings hydr ekp m440 16 foot x 440 ton 14 foot between housing
Pullmax Model
EKP-M440 16/14
Machine Details:
SERIAL ............................. 3189
MODEL .............................. EKP-M440 16/14
OVERALL LENGTH OF BED .............. 16'10
DISTANCE BETWEEN HOUSINGS .......... 14'
quality brand name machine
made in Sweden
sold and serviced worldwide
in plant Price $63,500.00
Masteel 500 ton x 14 Foot Press Brake Hydraulic no Pit-4.26M
Masteel 500 ton x 14 foot press brake -4.26M hydraulic no pit required
146 inch between-3.708M housings
MASTEEL CNC HYDRAULIC BRAKES
MBHSA-14500
Max. Capacity Tons 500
Max. Bending Length 14'
Distance between Frames 146"
Height of Bed 36"
Bed Below Floor Floor Model. No pit required
Depth of Throat 15 – ¾"
Length of Ram Stroke 10"
Fast Approach Speed IPM 190
Press Speed IPM 17
Fast Return Speed IPM 188
Max. Open Height 23-3/5"
Main Motor 40
Back gauge Travel 28"
Weight Lbs 61,000
Dimensions L x W x H 175x 80x124
STANDARD CONTROL FEATURES:
Standard SIEMENS TP-700 control with 6" Touch Screen display
SIEMENS Two Axis CNC controls on back gauge and ram bending position
Bosch-Rexroth Closed-loop proportional Hydraulic position control:
repeatability standard at ± 0.0006", optional at ± 0.0004”
Backgauge position control:
Standard CNC backgauge: speed at 200 IPM as per Demo Video; repeatability at ± 0.003"
Programmable backgauge retract feature
CNC bending angle control –Only inputs of bending angle, material thickness & die opening
Two-way bending calibration controls -allow inexperienced operator to achieve desired angles with no time consuming multiple test bends. Save on costly skilled labour and test bend material.
By correction of test-bending angle, control system automatically sets itself to achieve desired angle.
By correction of bending position calculated automatically by control system.
Dual ram position feedbacks with hydraulic Synchronized control compensates for uneven force on the bend
Tool memory for quick recall of tool setup
200 Job memory with average of 30 bends in each program
Programmable pressure control
Programmable ram delay control at bending position under adjustable pressure for bump bending or special heavy bending application
Maintenance plan auto-prompts service schedule
Operating hour meter
Operating prompts and Trouble shooting messages
Inch / MM conversion
Ad Number: 254663
ALLSTEEL PRESS BRAKE 600 TON X 12 FOOT 10 FT 2 bETWEEN HOUSINGS HYDRAULIC 12 IN
Allsteel
Type:
PRESS BRAKE HYDRAULIC DOWN ACTING
Model:
12 FOOT X 600 TON HYDRAULIC LATE MODEL
Year (or range of years):
LATE MODEL
Condition:
Excellent
Price (in US dollars):
USD
Quantity:
1
Type of Seller:
Dealer Non-Owner
Description:
ALLSTEEL 600 TON X 12 FOOT PRESS BRAKE HYDRAULIC DOWNACTING
600 TON CAPACITY
OVERALL 12 FOOT
DISTANCE BETWEEN HOUSINGS 10 FOOT 2 INCHES
50 HP 0 TO 12 INCH STROKE
50 HP
22 INCH DAYLIGHT
OVERALL DIMENSIONS 15 FOOT X 90 INCHES X 144 INCHES
WEIGHT 82000 LBS
COMPACT SYTLE MACHINE
EXCELLENT BRAND NAME
COMBINES THE BEST FEATURES OF MECHANICAL AND HYDRAULIC
NORTHEAST LOCATION
CAN BE SEEN UNDER POWER
INVGSLN031012
Pacific Hydraulic Press Brake, Model 600-14
Pacific Hydraulic Press Brake, Model 600-14
Specifications:
Serial Number - 2489
Date of Manufacture - 1962
Bending Capacity - low carbon steel, 5/8” thick x 12’ long
Max Punching Capacity - 400 Tons
Oil Required - 270 Gallons
Relief Valve Setting - 2200 PSI
Two (2) 25 HP, 440/3/60
Electrical Controls - 110/1/60
18' x 750 Ton Pacific Hydraulic Press Brake
750 TON X 18', PACIFIC HYDRAULIC PRESS BRAKE
Model: 750-18
Specifications:
TONNAGE 750 TON
OVERALL BED LENGTH 18'
BENDING CAPACITY 3/4" X 17'
DISTANCE BETWEEN FRAMES 16'
THROAT DEPTH 14"
STROKE 12"
OPEN HEIGHT 22"
CLOSED HEIGHT 10" $99,500.00
240" x 600 Ton Niagara CNC Hydraulic Press Brake
600 Ton x 20' Niagara Hydraulic Press Brake
Manufacturer: Niagara
Model: HD600-16-20
Year: 1994
Condition: Very Good
Specifications:
Tonnage 600
Shut Height 22/10
Stroke 10"
Main Motor 50 HP
Main power voltage in 440v
Slide area 20' x 86" x 5"
Bolster area 20' x 79" x 6"
Equipped With:
Cnc 500 Controls
Two Ram Up
Two Ram Down
(1) Ram Stop mounted
(4) Jacking bolts
Direct Drive system- no belts
240" x 600 Ton ACCURPRESS CNC Hydraulic Press Brake
Description:
600 Ton X 240" ACCURPRESS Hydraulic Press Brake
Manufacturer: ACCURPRESS
Model: 760020
S/N: 3825
Year: 1996
Condition: Good
600 Ton x 20'
Brake was rebuilt in 2008 with 2 Axis (XY) PL800 Bendwizard CNC Control, the hydraulic system rebuilt including the cylinders. Hydraulic Safety Valves (prevent ram from ever dropping unintentionally) and Lasersafe Safety Curtains.
Specifications:
Capacity 600 Ton
Bed Length 240"
Distance Between Housing 198"
Bed Height Above Floor 38"
Stroke 12"
Open Height 24"
Closed Height 12"
Throat Depth 12"
Speed Fast Approach 50 IPM
Speed Slow Bend 14 IPM
Speed Fast Return 79 IPM
Motor 60 HP 440/3
CNC Backgauge Travel 27"
Projection Below Floor 50"
Size 246"LR x 80"FB x 140" H
Weight 93000 LB
Hydraulic Reservoir Capacity 90 Gallons
Equipped With:
PC800 CNC Control
4-Way Die
Crowning Type Die Holder
(4) 20' Punches
LaserLite Curtain
Books and Manuals
Replacement cost aprox $350,000
Condition - Very Good
Price: $199,500.00

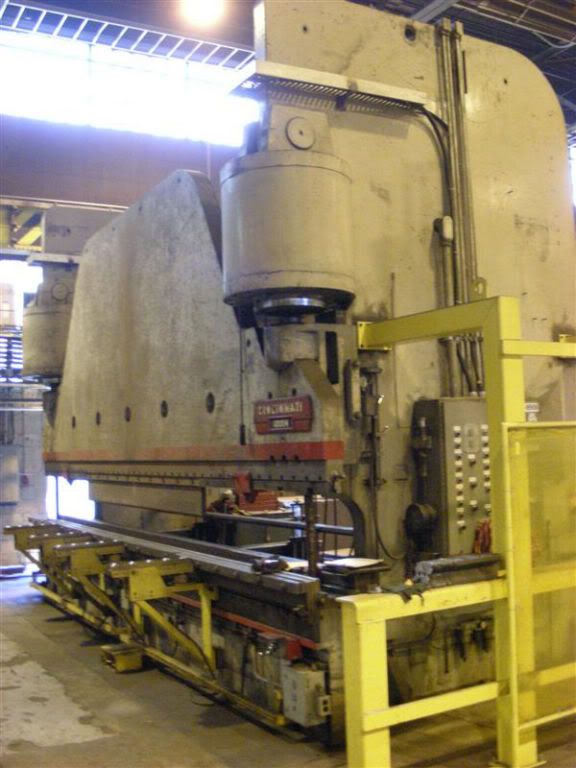

22' x 1000 Ton Cincinnati Hydraulic Press Brake
CINCINNATI 1000H SERIES X 18' CNC PRESS BRAKE
1000 TON X 18'/22'
1965
MANUFACTURER : CINCINNATI
MODEL : 1000H SERIES X 18'
YEAR : 1965
TONNAGE : 1000
OVERALL LENGTH : 22'
BETWEEN HOUSINGS : 18'
EQUIPPED WITH:
-AUTOMEC AUTOGAUGE CNC 1000 2-AXIS PROGRAMMABLE BACK GAUGE (RAM & BACKGAUGE)
-HEAVY DUTY 12" OPENING AJUSTABLE DIE
- 4 WAY DIE OF 173" LONG (1"-2"-3"-4"-V)
- LOTS OF TOP DIE $POR$
24' x 2000 Ton Niagara Hydraulic Press Brake
CLEARING NIAGARA MDL.2000-20-24
2000 TON X 24' HYDRAULIC PRESS BRAKE WITH 30'' THROAT
20'6'' BETWEEN HOUSINGS
18'' STROKE
12'' CLOSED DIE SPACE
30'' OPEN DIE SPACE
PACIFIC HYDRAULIC UNIT (S/N:4039), S/N: P54486 $POR$
1500 TON x 32' CINCINNATI HYDRAULIC PRESS BRAKE MODEL 1500H24 NEW 1977
1500 TON x 32' CINCINNATI HYDRAULIC PRESS BRAKE
MODEL 1500H24
NEW 1977
CAPACITY: 1500 TON
BENDING CAPACITY: 1-1/2" X 16' OVER 16" DIE
OVERALL LENGTH OF BED AND RAM: 32'
DISTANCE BETWEEN HOUSINGS: 24' 5-3/4"
STROKE: 24"
OPEN HEIGHT: 40"
CLOSED HEIGHT: 16"
THROAT: 24"
SPEEDS: 60 IPM FAST PRESS
24 IPM FULL TONNAGE
45 IPM RETURN
DEPTH OF PIT REQUIRED FOR BED: 103"
MOTOR: 75 HP
EQUIPPED WITH:
- COMPLETE WITH LASER SAFE (INSTALLED 2011)
- 24" HORN EXTENSION, BED & RAM, BOTH ENDS
- TONNAGE CONTROL & GAUGE
- SELF CONTAINED HYDRAULIC POWER UNIT WITH TWIN PUMPS
- ELECTRICAL CONTROLS
- FULL LENGTH DOVETAIL SLOT ACROSS BED FACE, FRONT & REAR
ESTIMATED APPROXIMATE SHIPPING WEIGHT: 325,000 LBS.
INVVM161013
SEE OUR STORE BELOW FOR ADDITONAL PRESS BRAKES UP TO 12000 TON
36' x 1500 Ton Cincinnati Hydraulic Press Brake
1974 Cincinnati 1500H press brake 1500 Ton,
36 foot overall 22 foot 5 BH-6.8M Hydr-11M overall
Hydraulic press brake 1500 ton x 36 foot-10.97M 6.
Model:
1500H 36 foot-22 foot 5 Between housings H hydraulic-10.97M overall
6.82M between housings
Condition:very good
CINCINNATI 1500H
s/n 35300
36’0” O.A.L. was extended from 30’-10M I have the prints on machine
-10.97M overall
It’s fabrication, it was done properly.
22’-5” B.H.-6.82M between housings
18” STROKE-
24” BED Width
Cylinders done in 1999 PER CUSTOMER ,THEY WERE
IN GREAT SHAPE ON MY SITE VISIT.
THE UNIT RAN JUST FINE NO PROBLEMS, OR NOISES FROM PUMP ..ETC.
Approx # 325,000 lbs
Good operating condition, I had it removed by Cincinnati
Their report was good. 2 small things on reinstall, bed shoes,
bolt clean up only.
1500 TON X 36'CINTI,18"STR,22'B.H.,4-SPEED,60 HP,MI500H
1500 TON RATING
36' LENGTH BED AND RAM
18" STROKE
24" OPEN HEIGHT
22'5" DISTANCE BETWEEN HOUSINGS
SPEEDS: 46 IPM RAPID ADVANCE
25 IPM FAST PRESS
10 IPM FULL TONNAGE PRESS
19 IPM RETURN SPEED
ORIGINALLY A 30' BED/RAM, EXTENDED TO 36'
WEIGHT: 300,000 LBS., EST.
COMPLETE WITH 60 HP 220/440/3/60 HYDRAULIC PUMP MOTOR,
ELECTRICAL CONTROLS.
WE PURCHASED THE UNIT IN FALL 10-09-09 .
THE CYLINDERS ARE IN A TEMPERATURE CONTROLLED ROOM.
THE HYDRAULIC SYSTEM HAS BEEN COMPLETELY CLEANED DOWN
AND IS COVERED AND STORED UNDER COVER.
ALL PARTS FOR RE- ASSEMBLY HAVE BEEN CLEANED AND ARE READY
FOR REASSEMBLY.
THE SMALL JIB CRANE WAS NOT SENT TO US.
additional detail, drawings and inspection report available
other machines on demand
Hydraulic 20 foot x 750 ton CNC, 20 foot x 1250 ton CNC,
600t, 1000t, 1500t mech
48 foot x 2200t, 32 foot x 1000 ton, 40 foot x 2000 ton 42 foot x 750 ton , 26 foot x 400 ton, 12 foot x 750 ton cnc hyd etc
new approx 2.2 million
Price $495,000.00 USD on location
Model PPHEE 630/70 (tandem version)
(1or2) CNC ARRIETA 630 ton x 7100mm Hydraulic Press Brake
Model PPHEE 630/70 (tandem version)
YOM 1996
Pass between columns 6100 mm
Throat 800 mm
CYBELEC DNC 70 for 3 axis
Acc.:
Programmable rear stop
Upper and lower dies
(2 x 630 t) x 14.200 mm, Pass between columns 2 x 6100 mm, $POR$
